Emay Smart HS

Eye-Catching, Aesthetic, High-Performance Economical Facades: Emay Smart HS

Combines superior functionality and aesthetics with a wide range of color options.

General Features

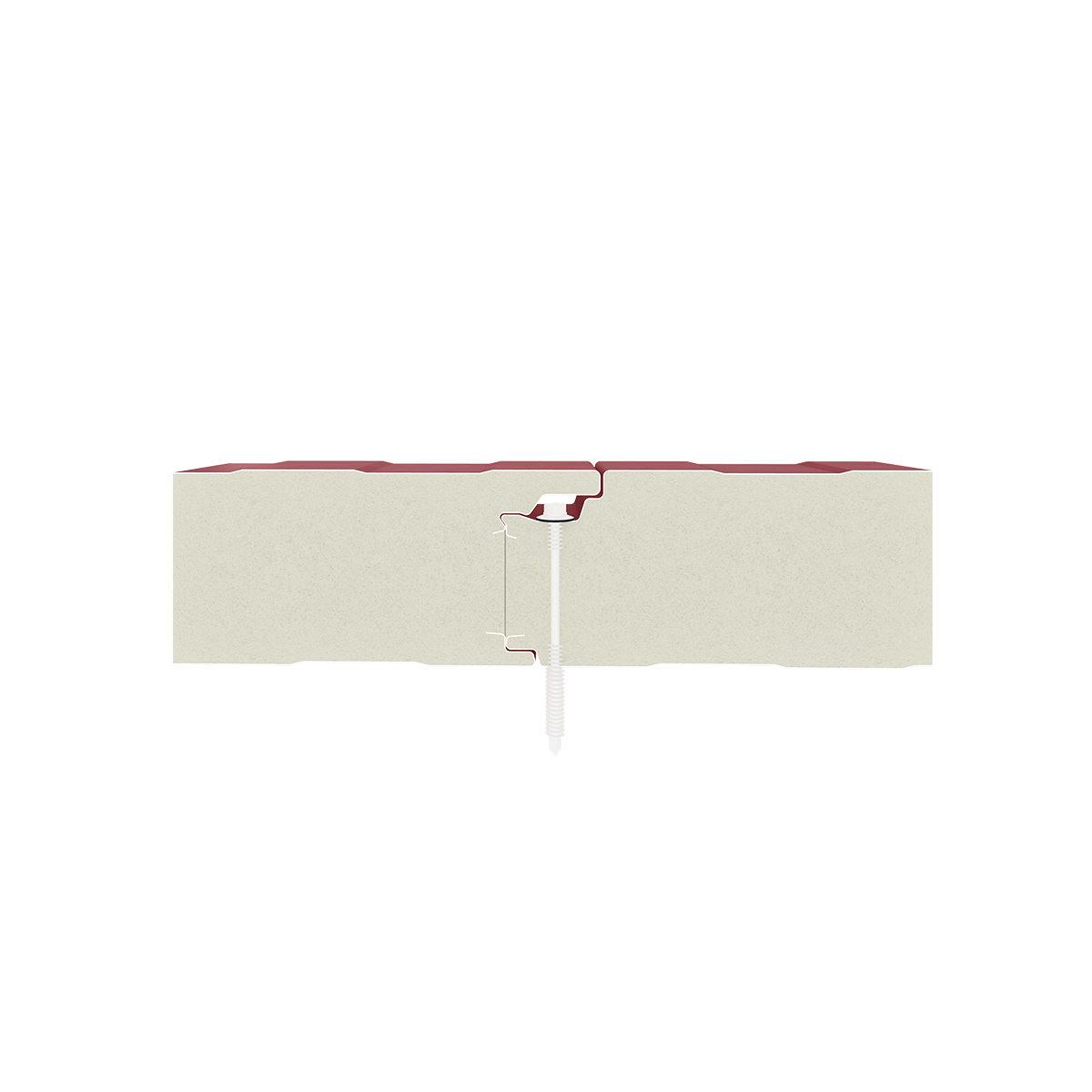

· Hides screws with a concealed-screw joint detail, providing watertightness and an aesthetic look.

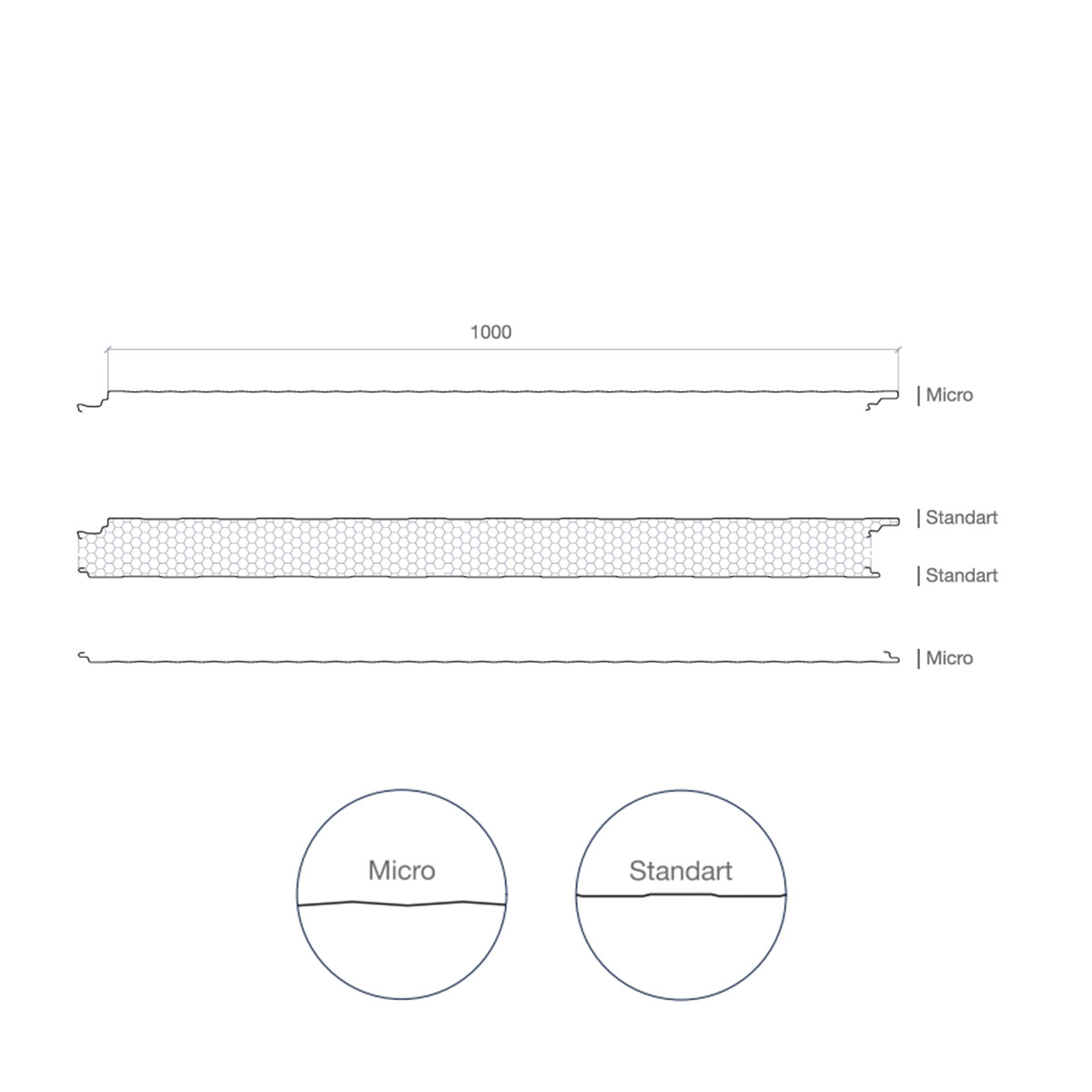

· Offers an aesthetic appearance with standard and micro surface options.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Provides high thermal insulation thanks to PUR/PIR insulation core.
· Does not absorb water thanks to its 95% closed-cell structure.
· Available with flame-retardant PUR core and high fire-resistance PIR insulation core options.
· Offers a wide range of color options.
· Its design ensures long service life.
· Can be combined with hidden-screw Emay facade panels.
· Available in insulation thicknesses of 40-50-60-80-100 mm.
· Can be produced in custom lengths from 2,500 mm up to 13,600 mm.

SKU: STOKKODU-3 Categories: ,

Description

Technical Specifications

Insulation Thickness Insulation Density Metal Thickness
Painted Galvanized Steel / Painted Aluminum		 Thermal Conductivity Coefficient Fire Class
40 – 50 – 60 – 80 – 100 mm PUR 38-40 (±2) kg/m3
PIR 38-42 (±2) kg/m3		 Outer Surface 0,45 – 0,50 – 0,60 – 0,70 mm
Inner Surface 0,35 – 0,40 – 0,50 – 0,60 – 0,70 mm		 Λ = 0,022 W/mK(EN 13165) PUR B-s2, d0 EN 13501-1
PUR C-s2, d0 EN 13501-1
PIR B-s1, d0 EN 13501-1
PUR B-s2, d0 EN 13501-1
Water Absorption Vapor Diffusion Resistance Closed Cell Ratio Dimensional Stability Paint Types
2% by volume (168 hours)(EN ISO 354) 30-100(EN 12086) %95(EN 14509) Class DS (TH) 11 Polyester, PVDF, Plastisol and PVC Coating

Load Bearing Table

EMAY SMART HS
INSULATION CORE
CORE THICKNESS mm
TOP SHEET mm
BOTTOM SHEET mm
 MULTIPLE SPAN mm
THERMAL TRANSMITTANCE U VALUE U (W/m²K)
THERMAL RESISTANCE R VALUE R (m²K/W)
1000 mm 1500 mm 2000 mm 2500 mm
PUR / PIR
 40 0,50 0,40 353 232 169 143 0,55 1,82
50 0,50 0,40 452 291 214 169 0,44 2,27
60 0,50 0,40 575 354 266 210 0,37 2,73
