Emay Smart HSM

An Aesthetic and High-Performance Facade Solution for Projects: Emay Smart HSM

Provides thermal and acoustic insulation and high fire resistance for industrial facilities, commercial buildings, social structures, and power plants.

General Features

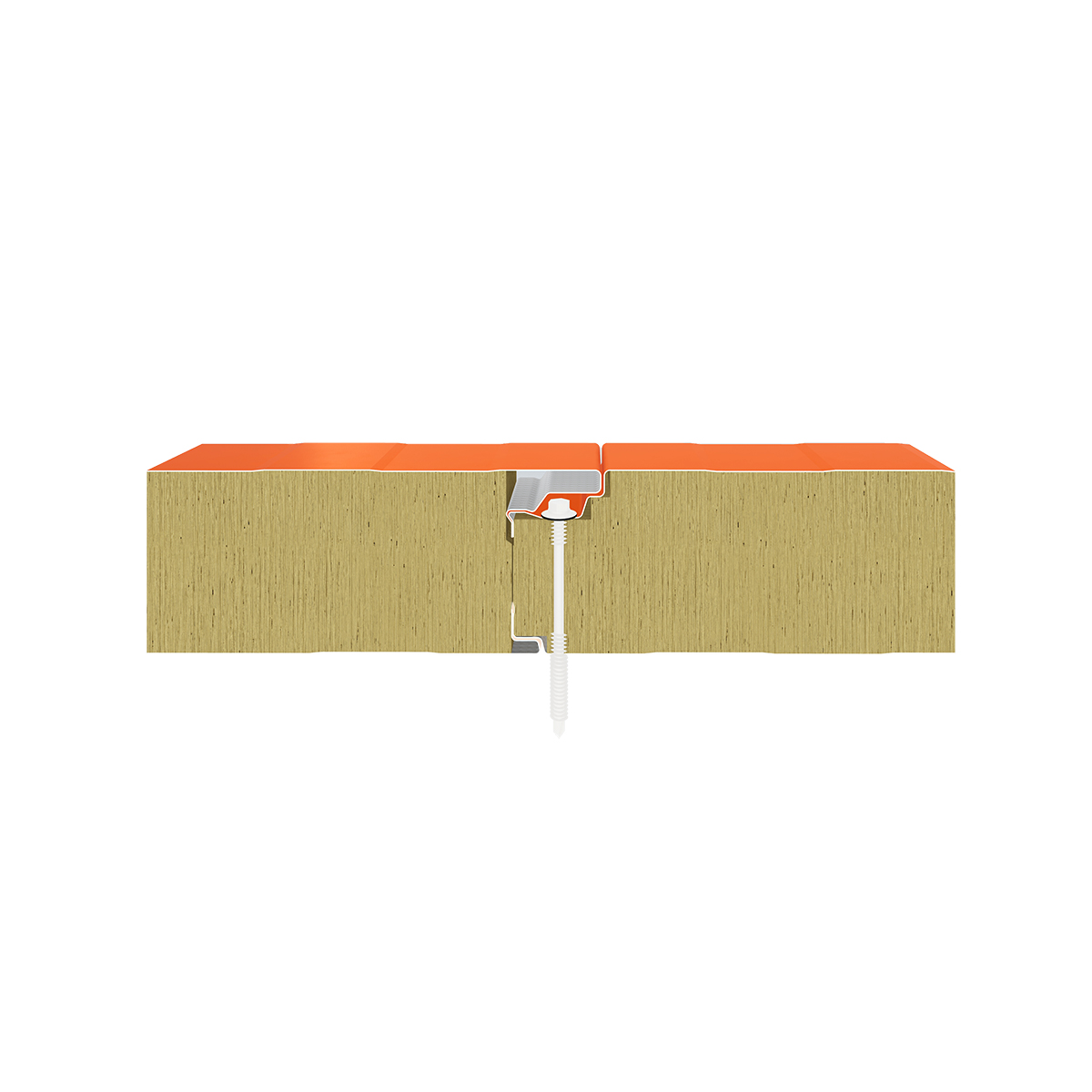

· Hides screws with a concealed-screw joint detail, providing watertightness and an aesthetic look.

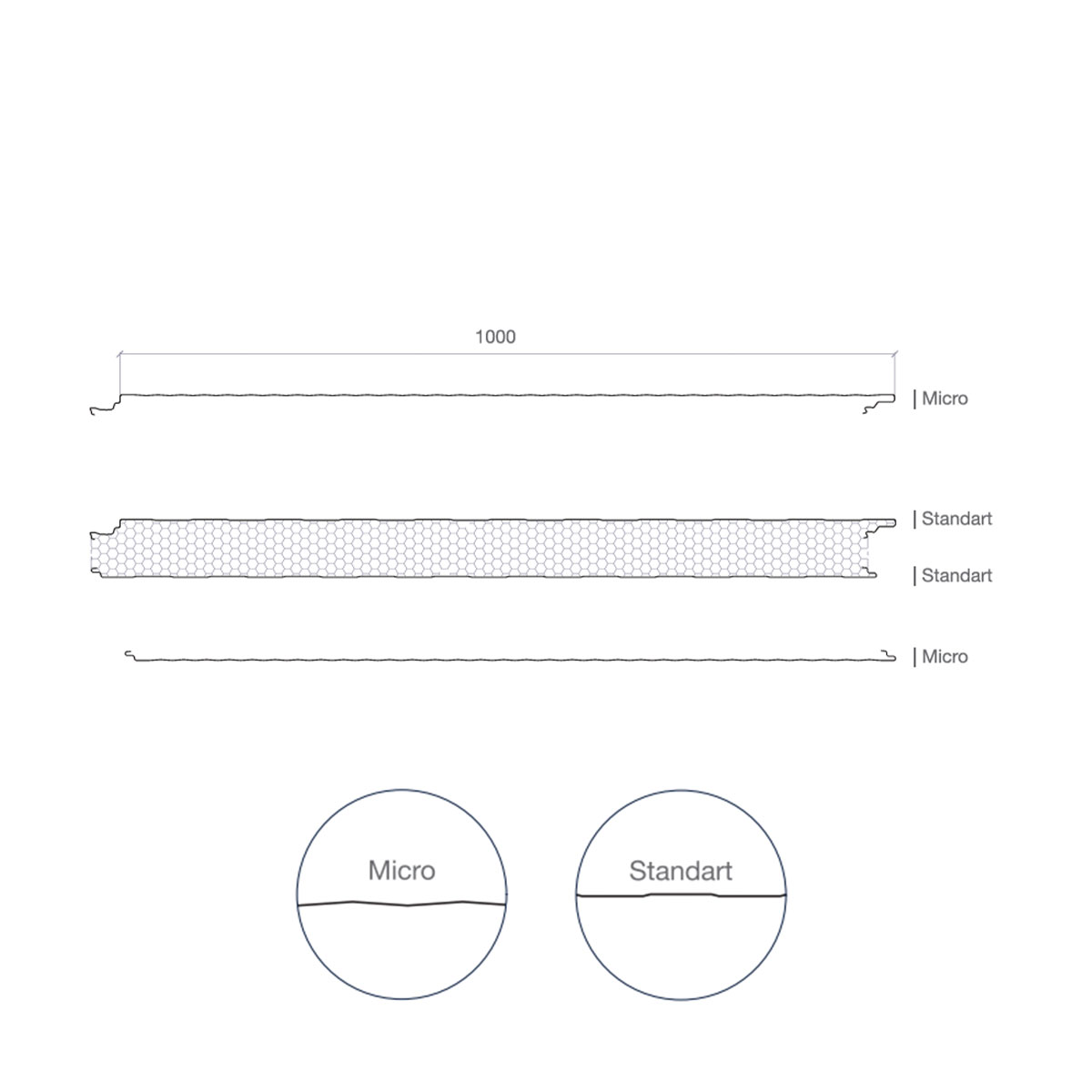

· Offers an aesthetic appearance with standard and micro surface options.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Stone wool core delivers high thermal insulation and fire resistance.
· Offers a wide range of color options.
· Its design ensures long service life.
· Available in insulation thicknesses of 50-60-80-100-120-150 mm.
· Can be produced in custom lengths from 2,500 mm up to 12,500 mm.



SKU: STOKKODU-3-1-1-1-1-1 Categories: ,

Description

Technical Specifications

Insulation Thickness Insulation Density Metal Thickness
Painted Galvanized Steel / Painted Aluminum		 Thermal Conductivity Coefficient Fire Class
50 – 60 – 80 – 100 – 120 – 150 mm 100 – 110 – 120 – 130 kg/m3 Outer Surface 0,50 – 0,60 – 0,70 mm
Inner Surface 0,40 – 0,50 – 0,60 – 0,70 mm		 Λ = 0,035 W/mK(EN 12667) A2-s1; d0TS EN 13501-1
Water Absorption Vapor Diffusion Resistance Acoustic Insulation Rw [dB] ≥ Dimensional Stability Paint Types
2% by volume (168 hours)(EN ISO 354) 1(EN 12086) 30 dB 600 °C Polyester, PVDF, Plastisol and PVC Coating

Load Bearing Table

EMAY SMART HSM
INSULATION CORE
CORE THICKNESS mm
TOP SHEET mm
BOTTOM SHEET mm
 MULTIPLE SPAN mm
THERMAL TRANSMITTANCE U VALUE U (W/m²K)
THERMAL RESISTANCE R VALUE R (m²K/W)
1000 mm 1500 mm 2000 mm 2500 mm
MINERAL WOOL
 50 0,50 0,40 287 189 143 109 0,70 1,43
60 0,50 0,40 352 228 165 130 0,58 1,71
80 0,50 0,40 490 311 226 181 0,44 2,29
