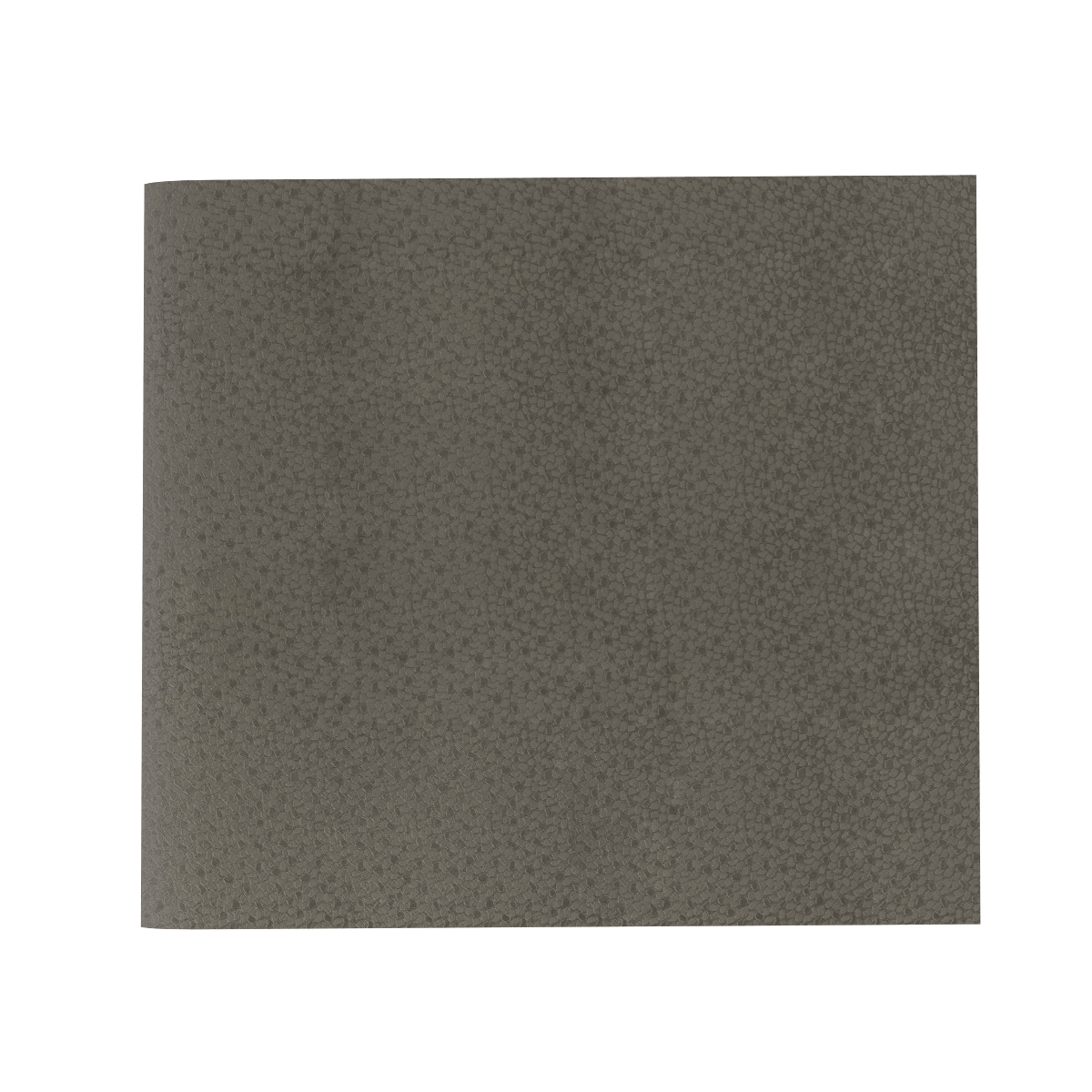

Emay Smart 5R VS PVC/TPO - Image 3

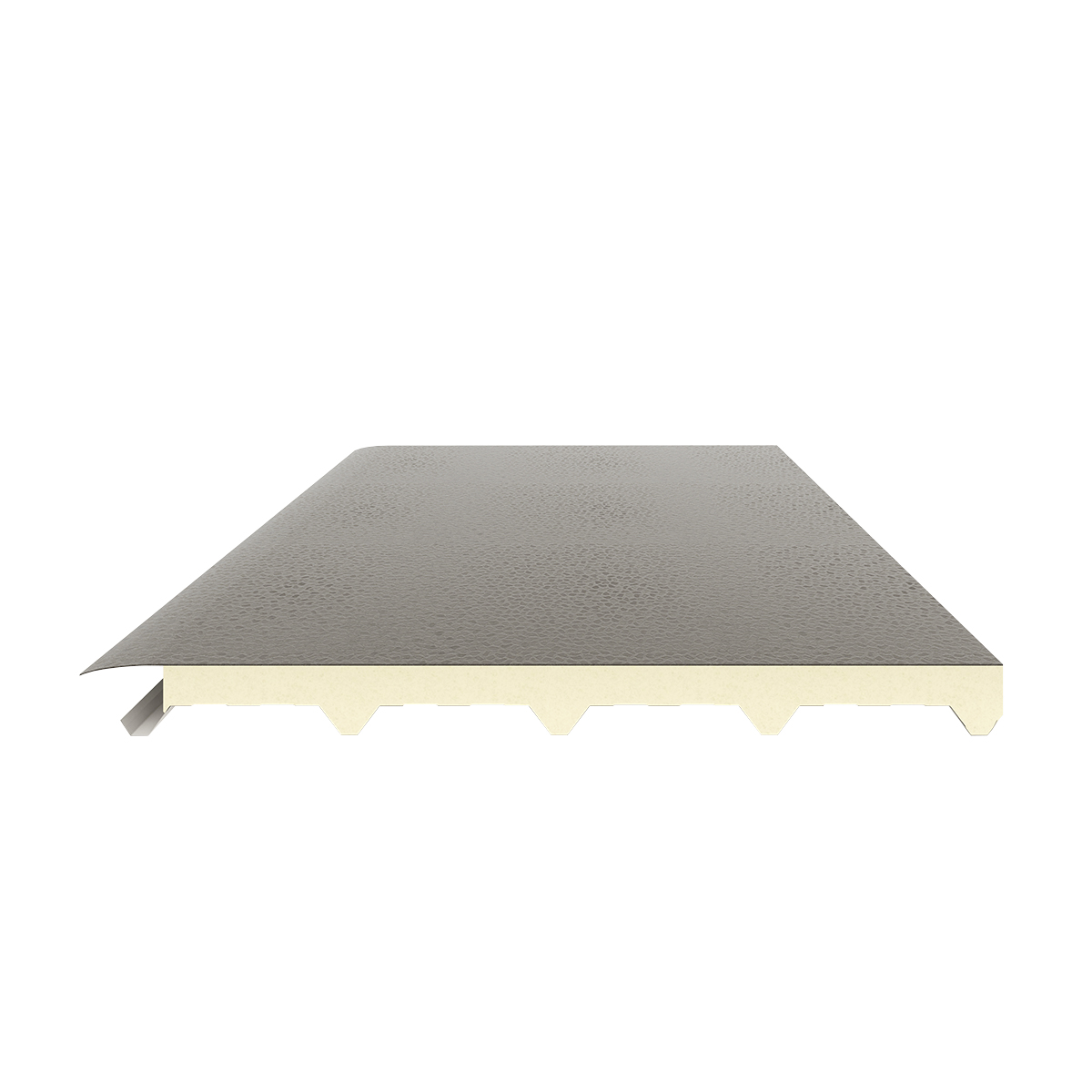

Emay Smart 5R VS PVC/TPO - Image 4
Emay Smart 5R VS PVC/TPO - Image 5

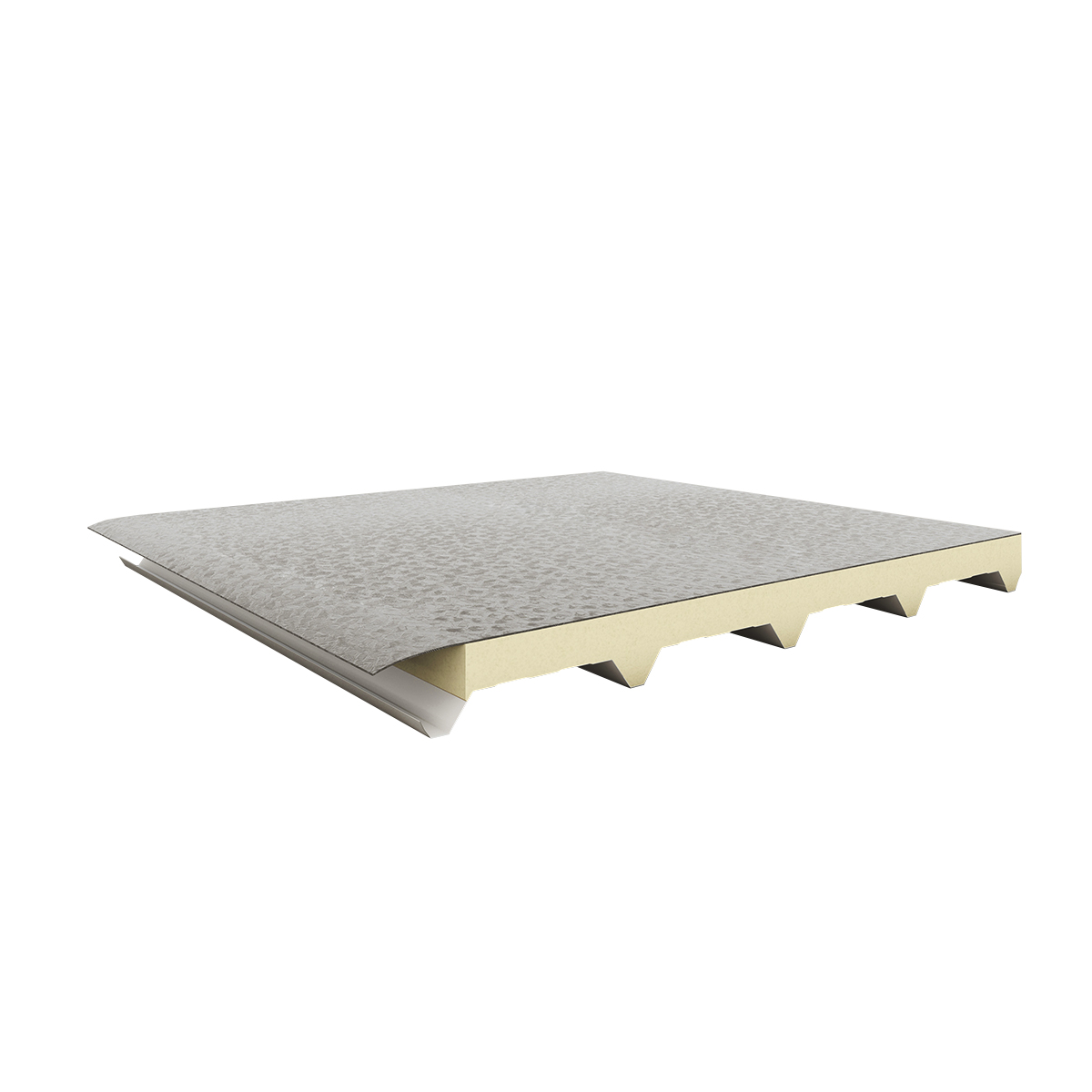

Emay Smart 5R VS PVC/TPO

Superior Load and Insulation Performance: Emay Smart 5R VS PVC/TPO

Specially designed to provide water and thermal insulation on low-slope roofs; with TPO or PVC membrane-coated lower surfaces, it offers thermal, acoustic, and superior water insulation.

General Features

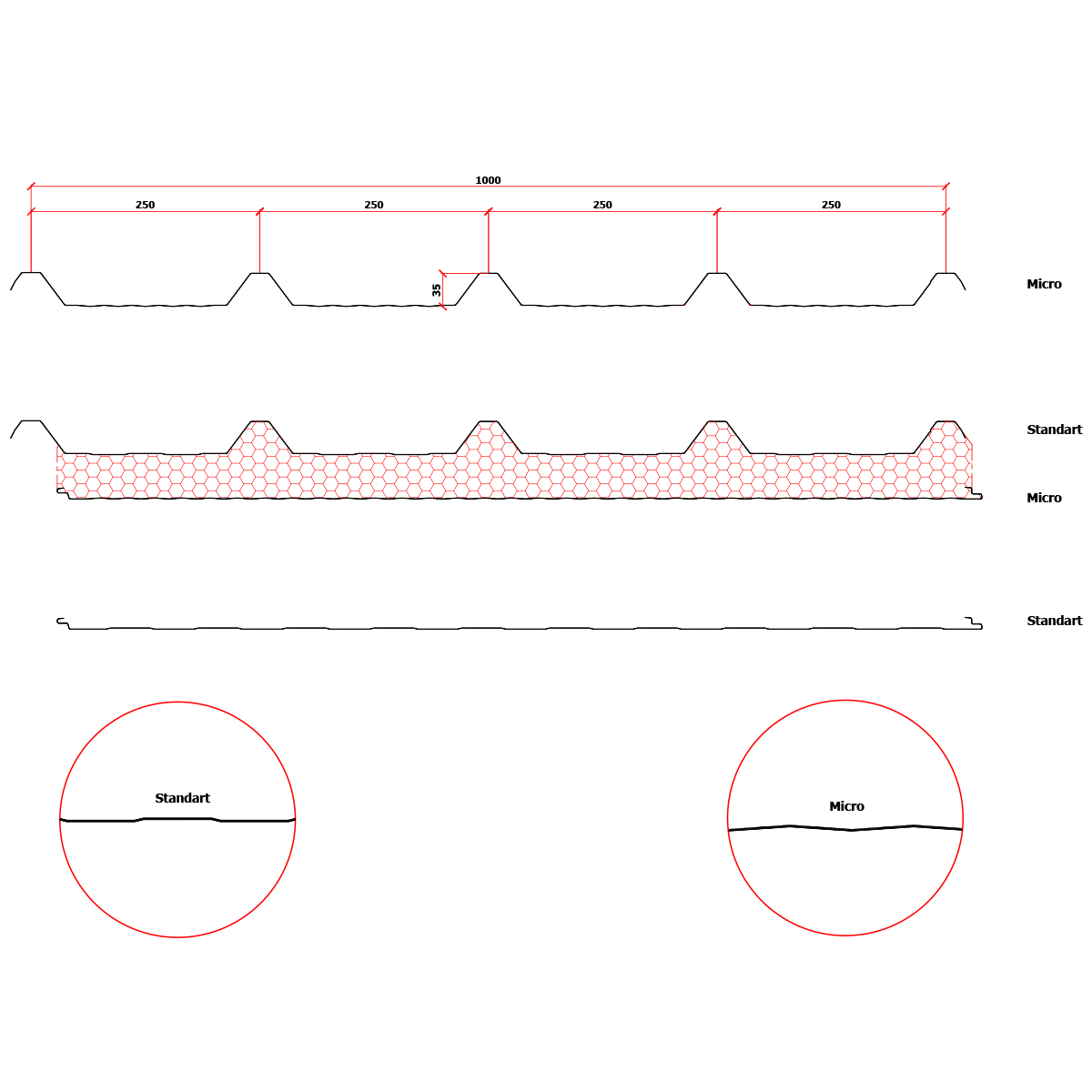

· Has a 5-rib, high-corrugation structure.
· Offers easy installation thanks to its external screw connection detail.
· Provides high load-bearing performance thanks to its rib height and cross-section geometry.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Provides high thermal and water insulation thanks to its membrane surface and PUR/PIR insulation core.
· Does not absorb water thanks to its 95% closed-cell structure.
· Available with flame-retardant PUR core and high fire-resistance PIR insulation core options.
· Economical: delivers maximum efficiency at optimum cost.
· Its design ensures long service life.
· Available in insulation thicknesses of 40-50-60-80-100-120 mm.
· Can be produced in custom lengths from 2,500 mm up to 13,600 mm.

SKU: emay-smart-membranli-5h-dv-pvc-tpo Categories: ,

Description

Load Bearing Table

EMAY SMART 5R VSM PVC/TPO MEMBRAN
INSULATION CORE TOP MEMBRANE mm BOTTOM SHEET mm MULTIPLE SPAN mm
1000 mm 1500 mm 2000 mm
MINERAL WOOL 1,20 0,50 221 145 111
1,20 0,60 266 174 141
1,20 0,70 308 204 155

• Material is taken as DX-51.
• Deflection limit is calculated as L/200.
• Calculated according to allowable-stress design.
• Load values in the table do not include point or linear loads.
• Site-related variables must also be considered.
• Load values in the table represent uniformly distributed load (kg/m²).
• The values are approximate calculations shared for reference. Emay Panel reserves the right to modify them..
• For more details, please contact the Emay Panel quality department.
