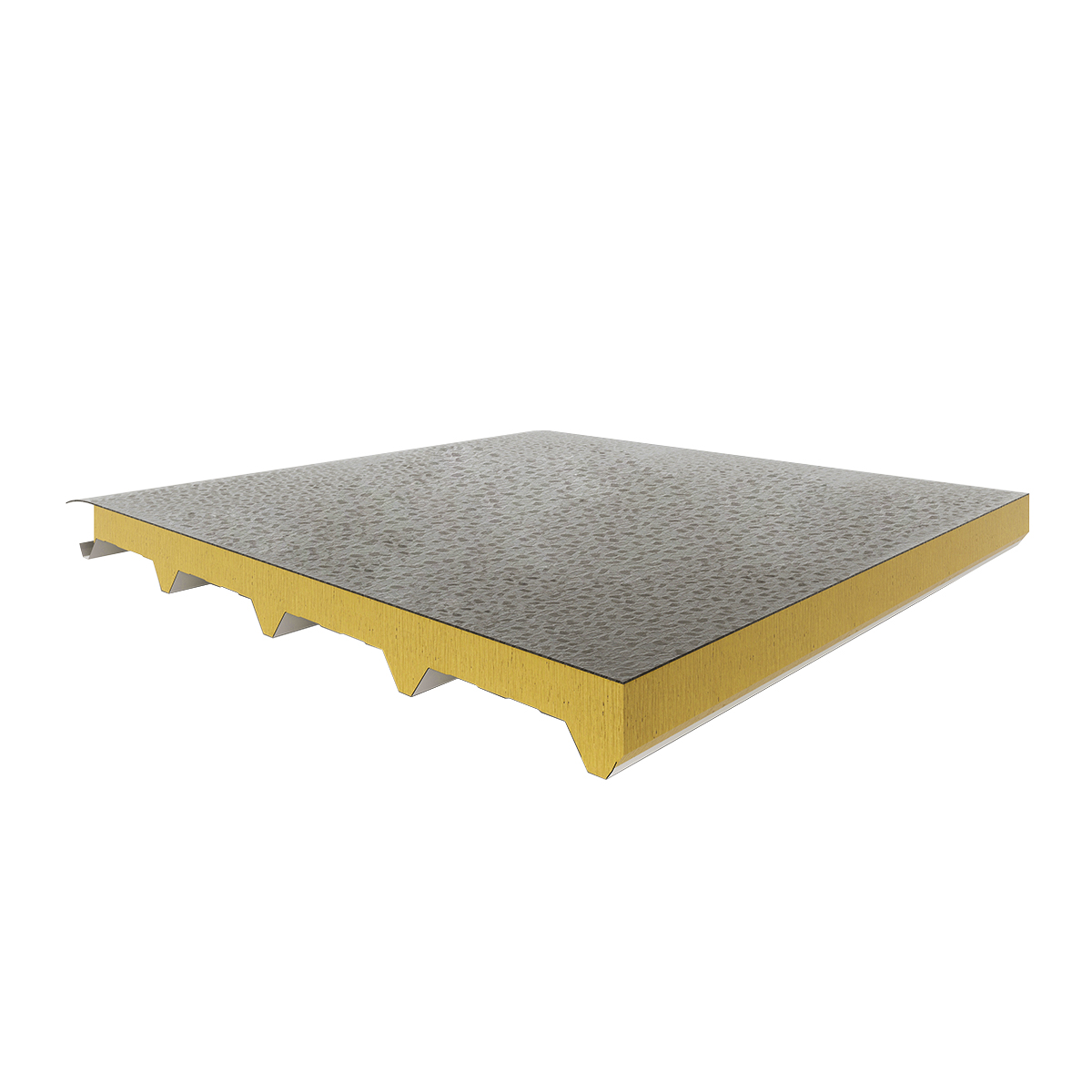

Emay Smart Membrane 5R VSM PVC/TPO

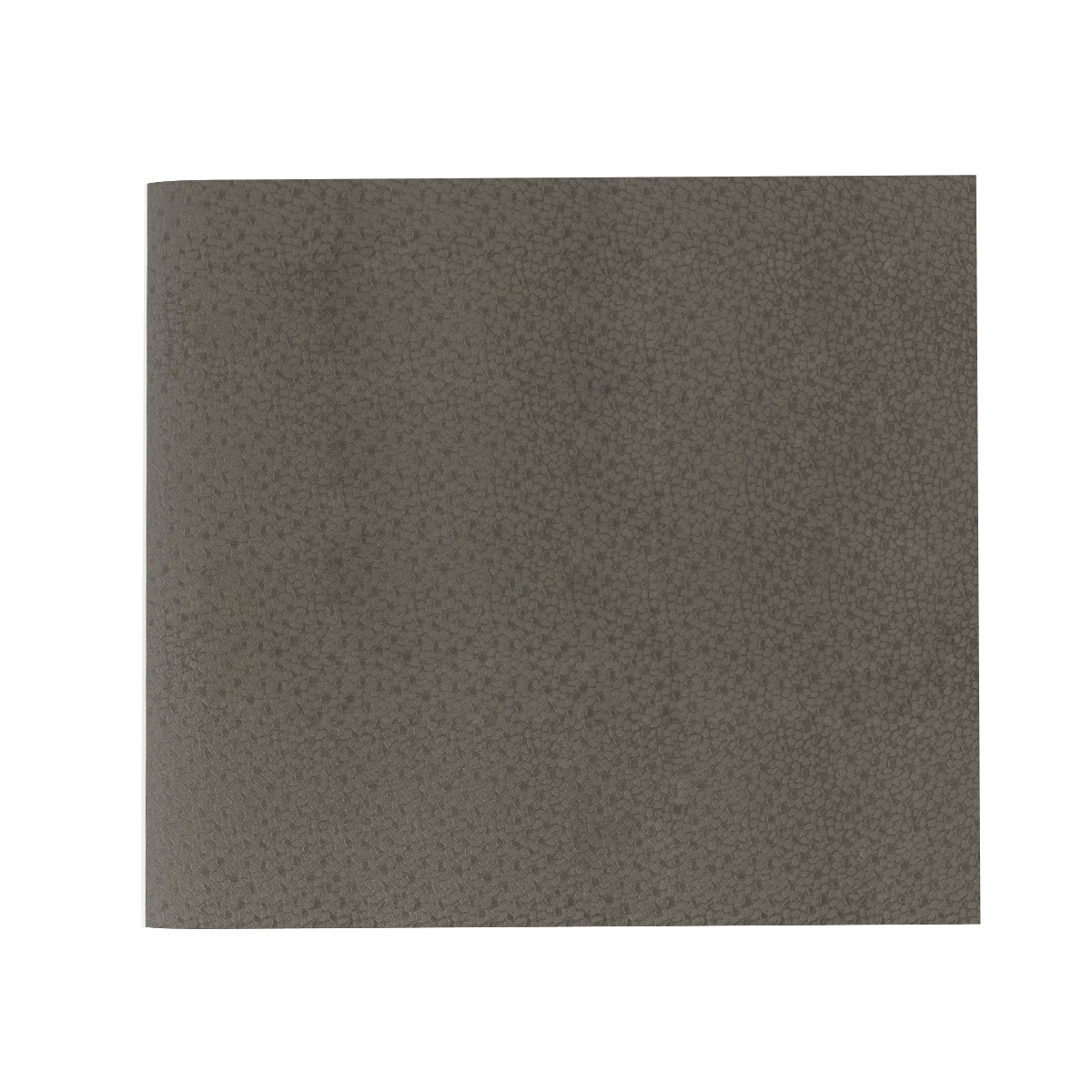

Emay Smart Membrane 5R VSM PVC/TPO - Image 2

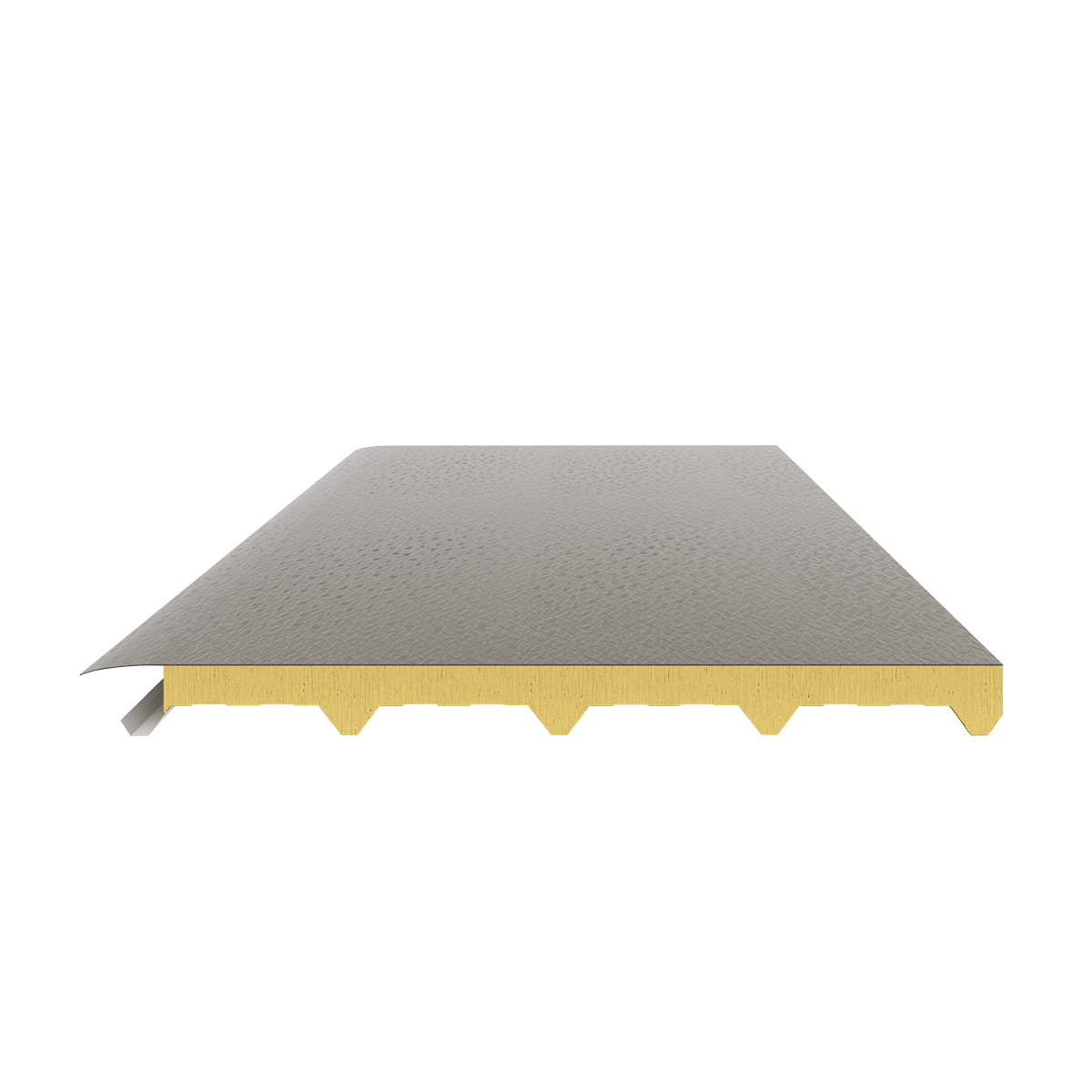

Emay Smart Membrane 5R VSM PVC/TPO - Image 3

Emay Smart Membrane 5R VSM PVC/TPO

High Safety and Insulation: Emay Smart Membrane 5R VSM PVC/TPO

Specially designed to provide water and thermal insulation on low-slope roofs; with TPO or PVC membrane-coated lower surfaces, it delivers thermal, acoustic, and superior water insulation.

General Features
· Has a 5-rib, high-corrugation structure.
· Easy installation thanks to the external screw connection detail.
· The membrane and mineral core materials deliver water, thermal, and acoustic insulation on your roof while also providing superior fire safety.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Its design ensures long service life.
· Available in insulation thicknesses of 50-60-80-100-120-150 mm.
· Can be produced in custom lengths from 2,500 mm up to 12,500 mm.

SKU: STOKKODU-2-1 Categories: ,

Description

Load Bearing Table



EMAY SMART 5R VSM PVC/TPO MEMBRAN
INSULATION CORE
TOP MEMBRANE mm
BOTTOM SHEET mm
 MULTIPLE SPAN mm
1000 mm 1500 mm 2000 mm
MINERAL WOOL
 1,20 0,50 221 145 111
1,20 0,60 266 174 141
1,20 0,70 308 204 155


• Material is taken as DX-51.
• Deflection limit is calculated as L/200.
• Calculated according to allowable-stress design.
• Load values in the table do not include point or linear loads.
• Site-related variables must also be considered.
• Load values in the table represent uniformly distributed load (kg/m²).
• The values are approximate calculations shared for reference. Emay Panel reserves the right to modify them..
• For more detailed information, contact Emay Panel quality department.
