The 5×5 of the Roof Panel Category: Unmatched: Emay Smart 5S HS

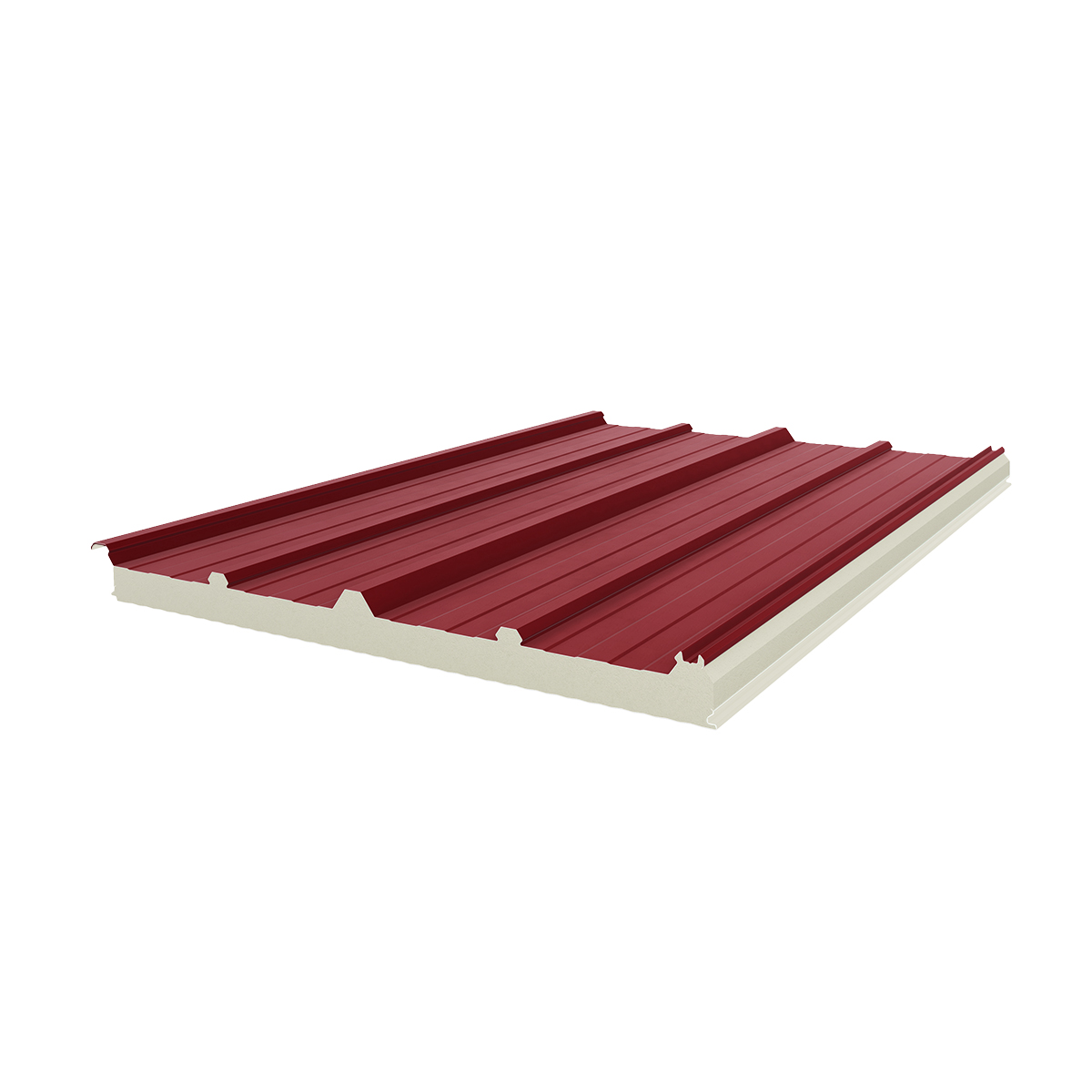

Turkey's first 5-rib, solar-ready, hidden-screw sandwich roof panel — combining high load-bearing capacity, aesthetics, and superior water insulation.

General Features

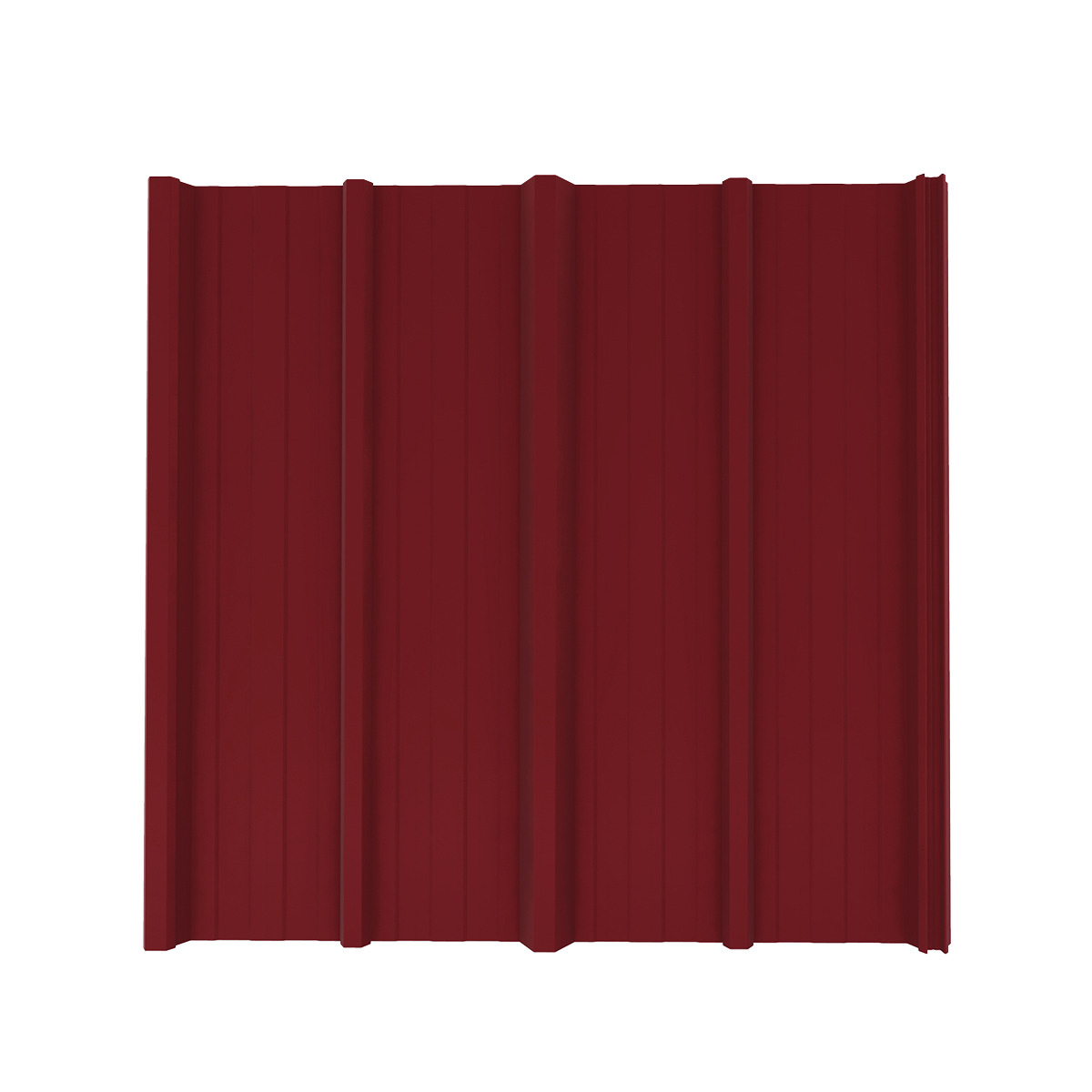

· 5-rib structure with ribs designed for solar mounting, providing a reliable base for your solar panel systems.

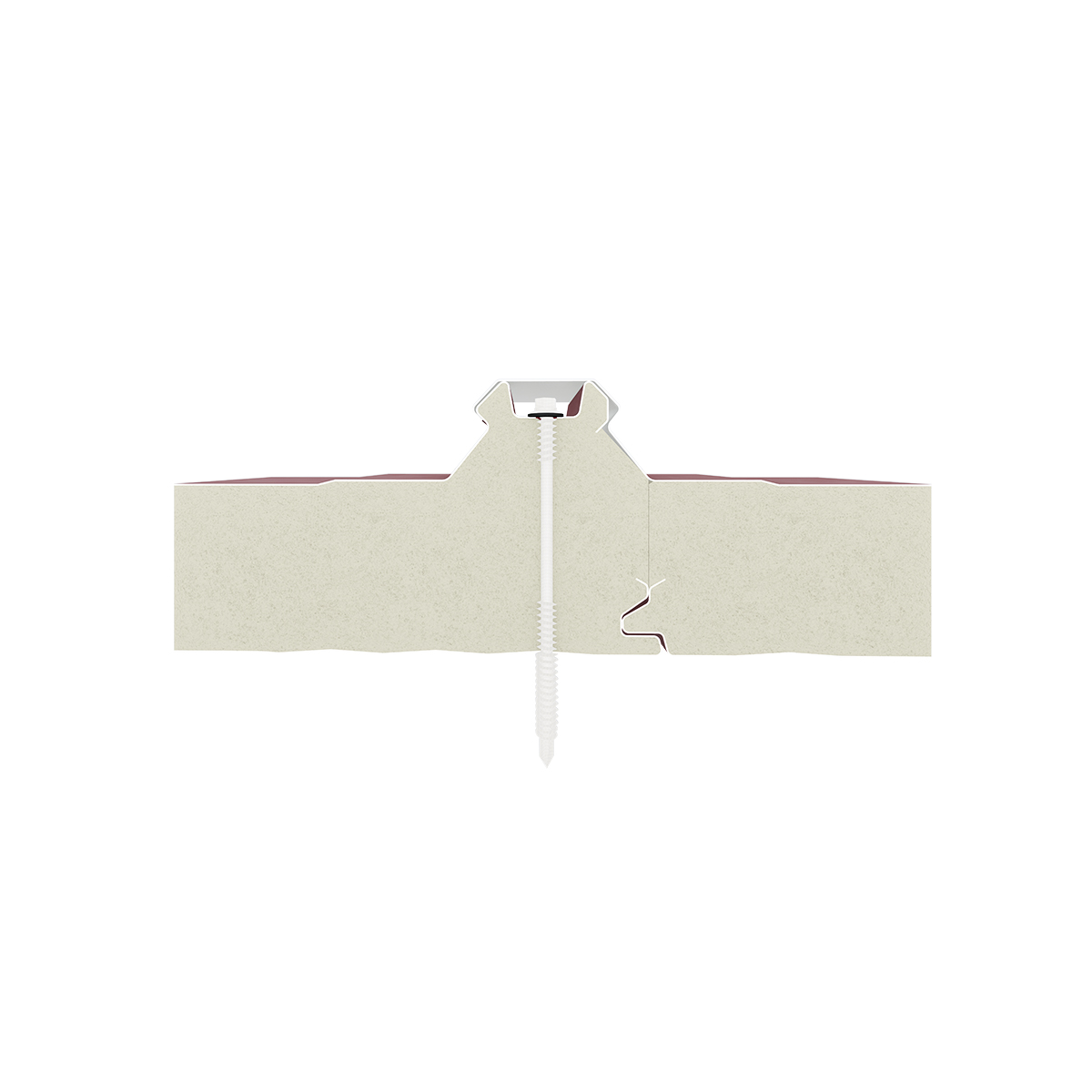

· The hidden-screw joint detail provides superior water insulation.
· HVAC units, walkways and solar-panel systems can be installed easily using dedicated fixings — with no need to drill holes through the roof panels.

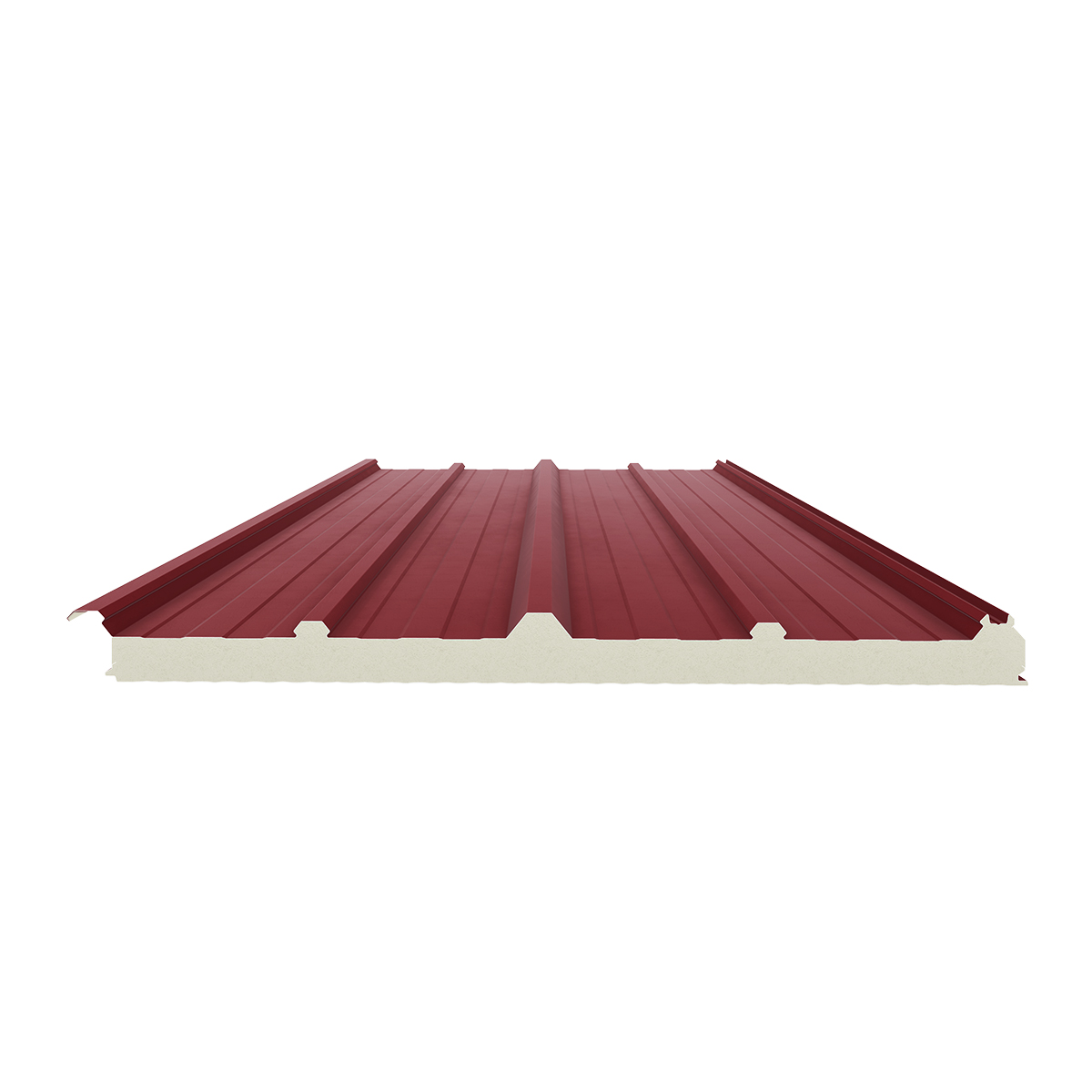

· Provides high load-bearing performance thanks to its cross-section geometry.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Provides high thermal insulation thanks to PUR/PIR insulation core.
· Does not absorb water thanks to its 95% closed-cell structure.
· Available with flame-retardant PUR core and high fire-resistance PIR insulation core options.
· Its design ensures long service life.
· Available in insulation thicknesses of 40-50-60-80-100-120 mm.
· Available in any custom length from 2,500 mm up to 13,600 mm.

SKU: STOKKODU Categories: , ,

Description

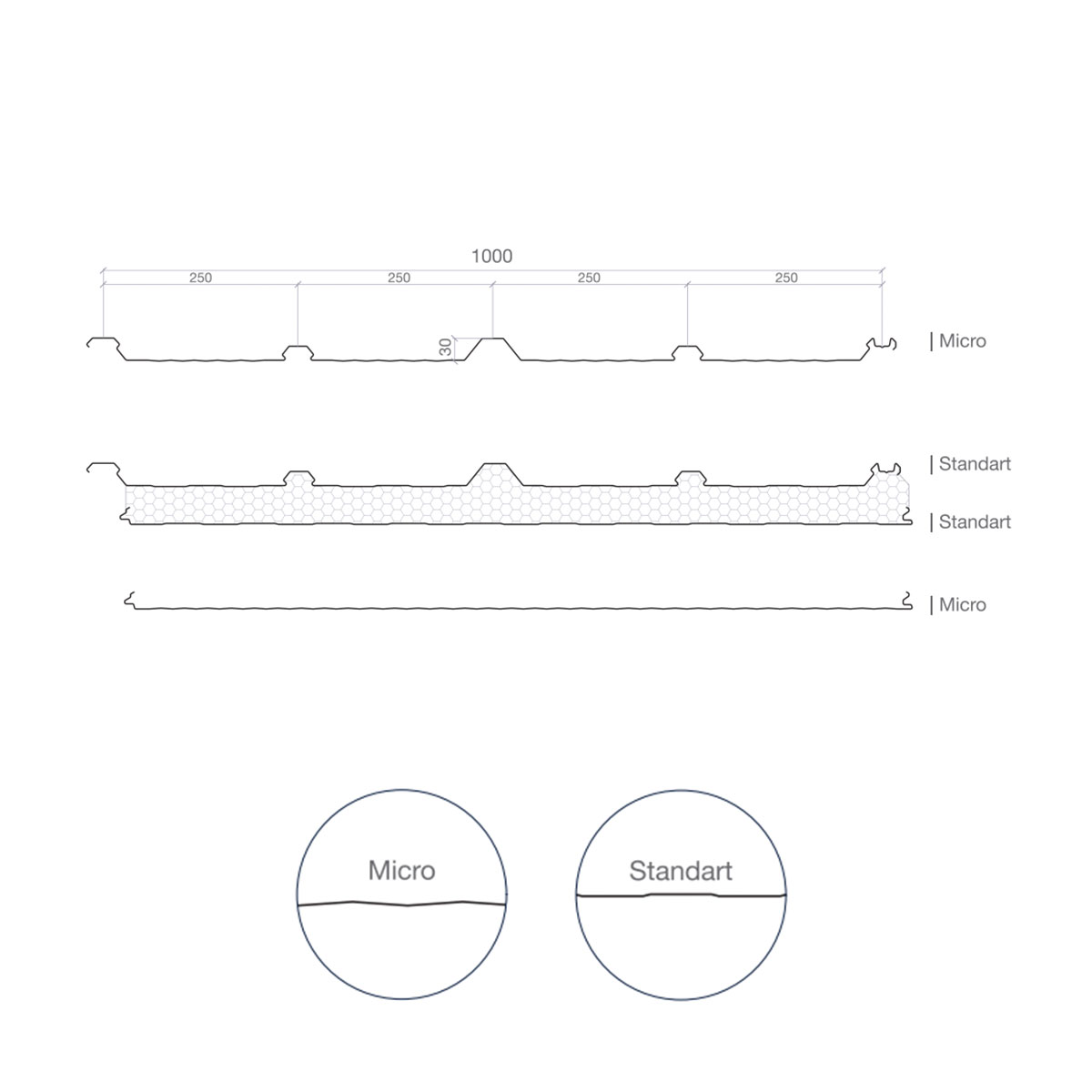

Technical Specifications

Insulation Thickness Insulation Density Metal Thickness
Painted Galvanized Steel / Painted Aluminum		 Thermal Conductivity Coefficient Fire Class
40 – 50 – 60 – 80 – 100 – 120 mm PUR 38-40 (±2) kg/m3
PIR 38-42 (±2) kg/m3		 Outer Surface 0,50 – 0,60 – 0,70 mm
Inner Surface 0,40 – 0,50 – 0,60 – 0,70 mm		 Λ = 0,022 W/mK(EN 13165) PUR B-s2, d0 EN 13501-1
PUR C-s2, d0 EN 13501-1
PIR B-s1, d0 EN 13501-1
PUR B-s2, d0 EN 13501-1
Water Absorption Vapor Diffusion Resistance Closed Cell Ratio Dimensional Stability Paint Types
2% by volume (168 hours)(EN ISO 354) 30-100(EN 12086) %95(EN 14509) Class DS (TH) 11 Polyester, PVDF, Plastisol and PVC Coating

Load Bearing Table

EMAY SMART 5S HS
INSULATION CORE
CORE THICKNESS mm
TOP SHEET mm
BOTTOM SHEET mm
 MULTIPLE SPAN mm
THERMAL TRANSMITTANCE U VALUE U (W/m²K)
THERMAL RESISTANCE R VALUE R (m²K/W)
1000 mm 1500 mm 2000 mm 2500 mm
PUR / PIR
 40 0,50 0,40 435 246 173 133 0,55 1,82
50 0,50 0,40 526 307 218 168 0,44 2,27
60 0,50 0,40 552 357 256 188 0,37 2,73

• Material is taken as DX-51.
• Deflection limit is calculated as L/200.
• Calculated according to allowable-stress design.
• Load values in the table do not include point or linear loads.
• Site-related variables must also be considered.
• Load values in the table represent uniformly distributed load (kg/m²).
• The values are approximate calculations shared for reference. Emay Panel reserves the right to modify them..
• For more details, please contact the Emay Panel quality department.
