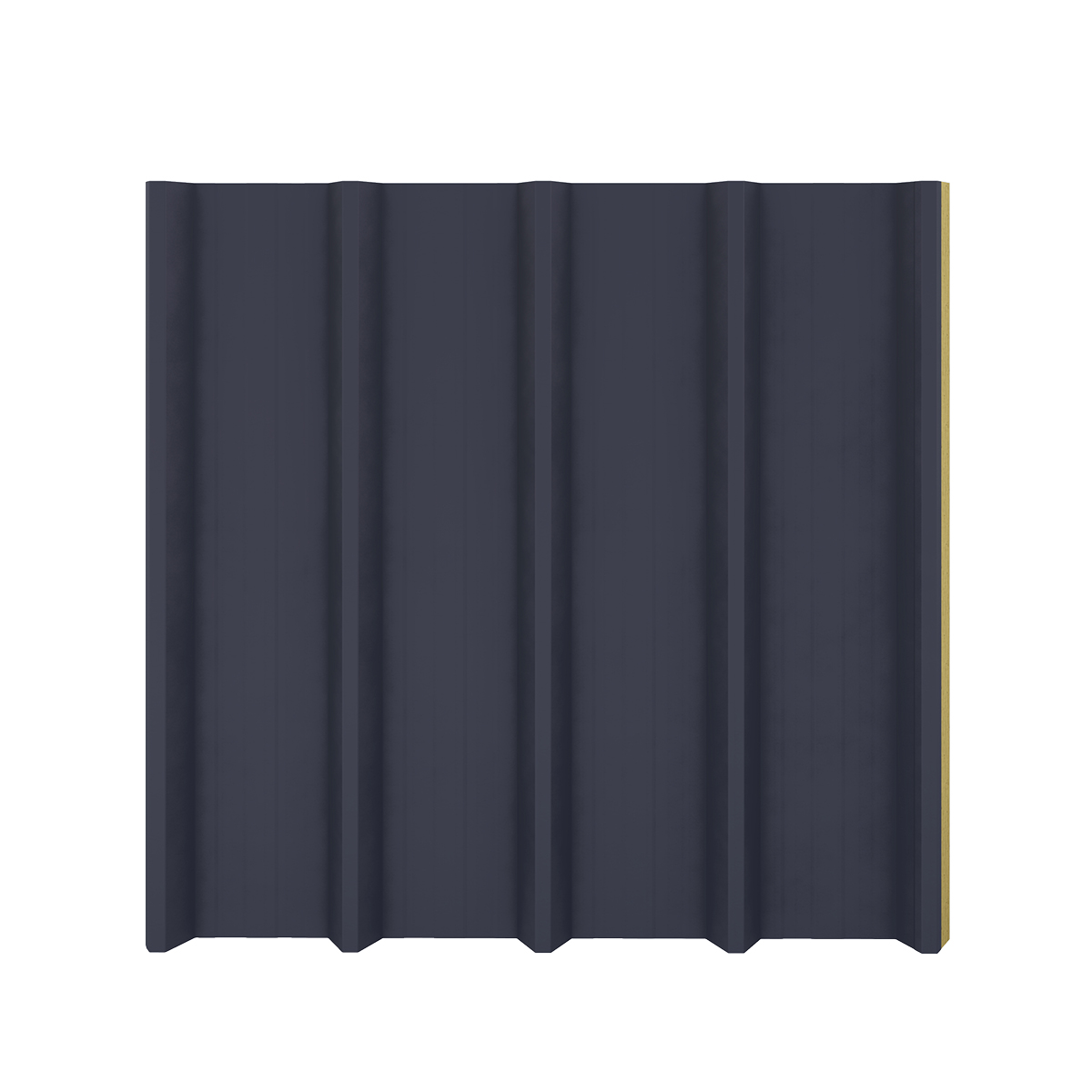

The Choice of Those Seeking High Safety: Emay Smart 5R VSM

Provides high fire resistance and uninterrupted protection thanks to its stone wool core.

General Features

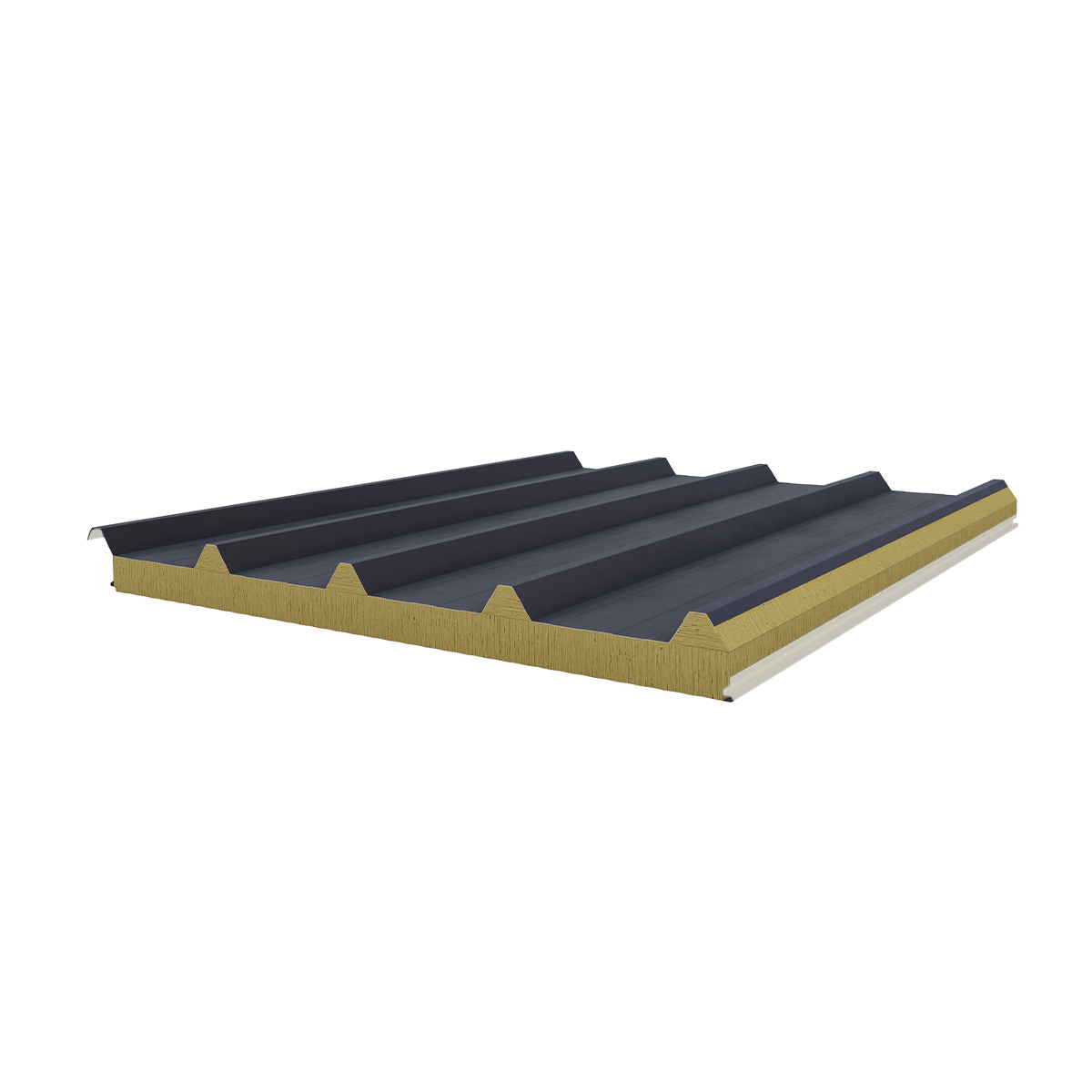

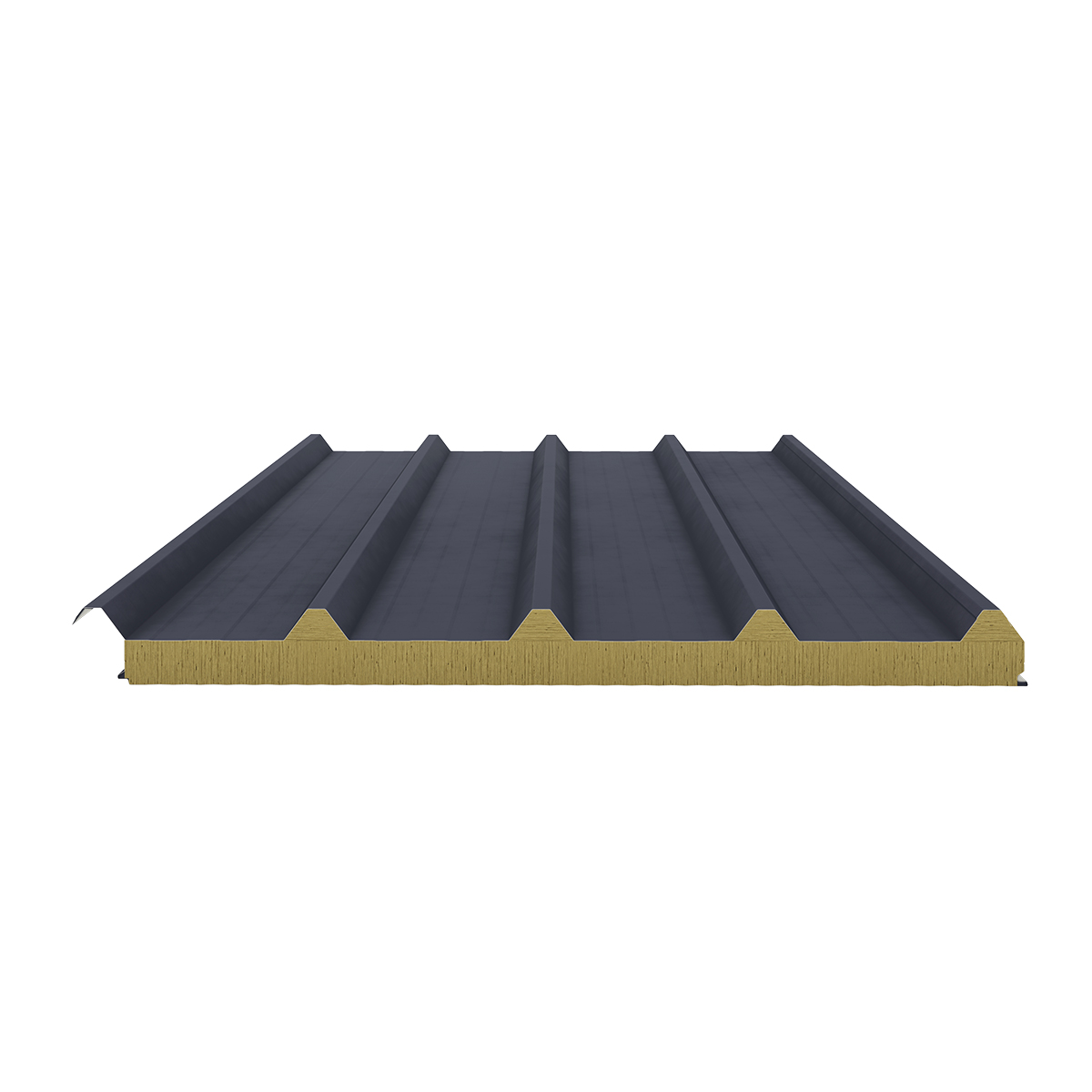

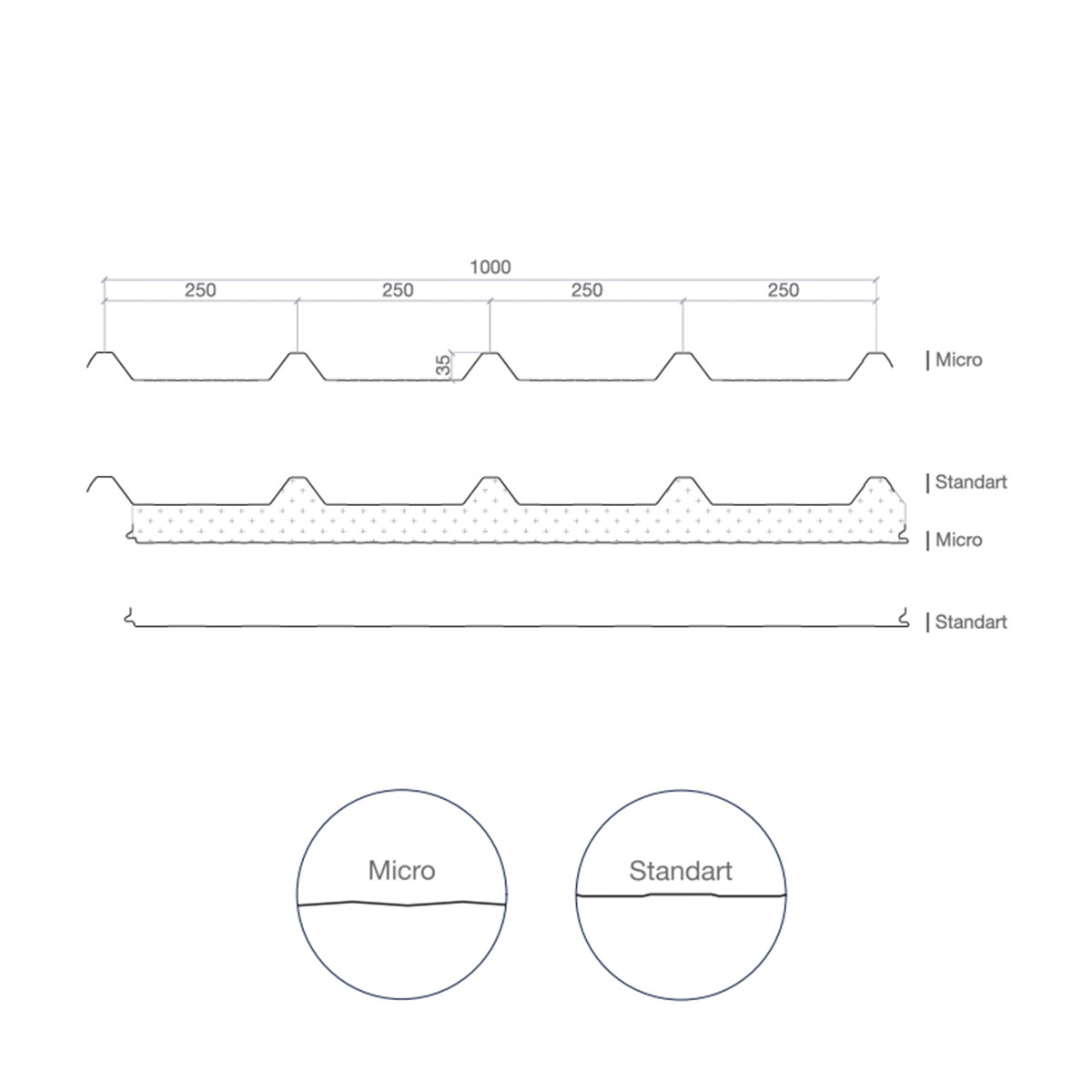

· Has a 5-rib, high-corrugation structure.

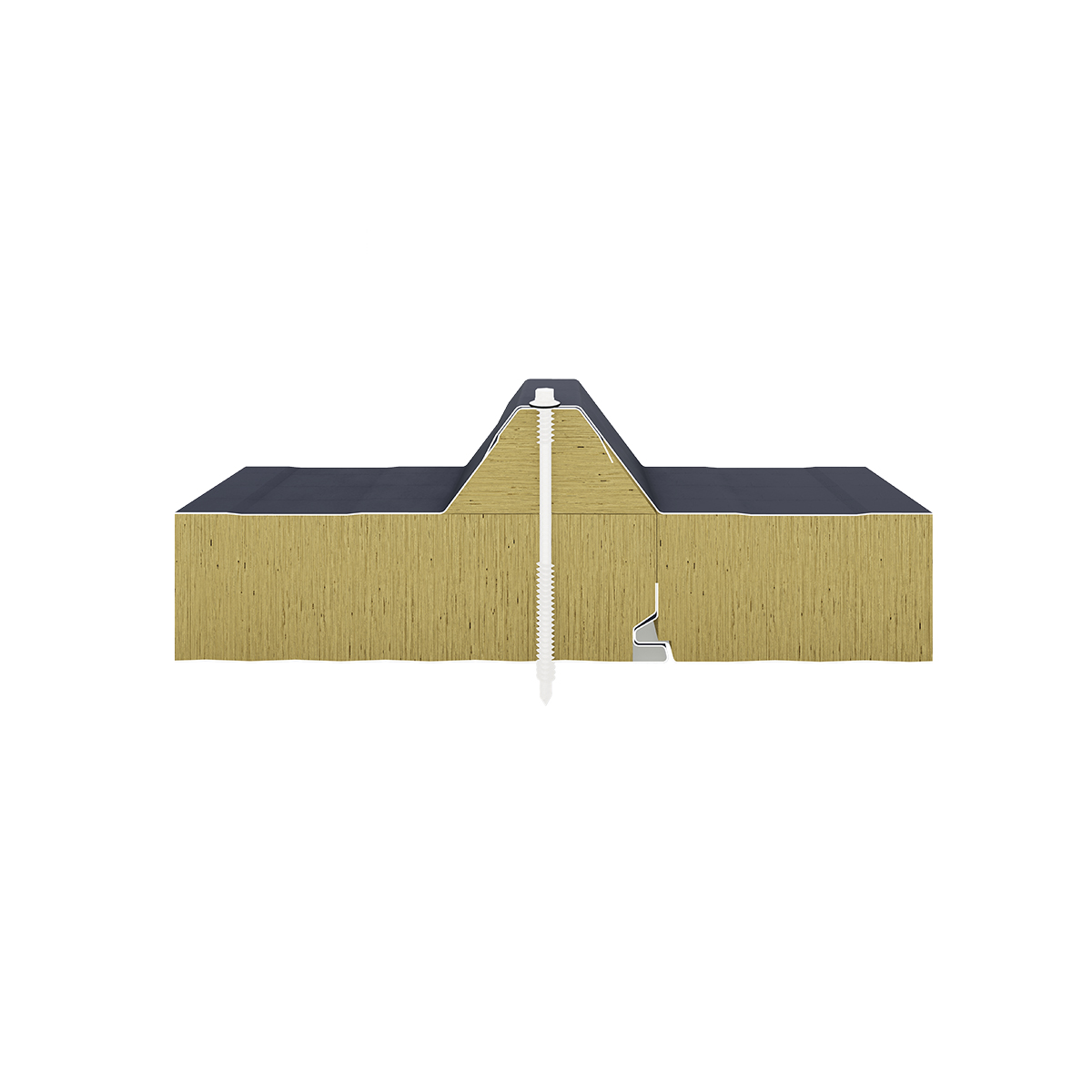

· Offers easy installation thanks to its external screw connection detail.
· Provides high load-bearing performance thanks to its rib height and cross-section geometry.
· Available in painted galvanized steel (PPGS), painted aluminum (BAL) and stainless steel.
· Available in PVDF, plastisol, polyester (PE) and PVC-film coating options.
· Stone wool insulation core delivers high thermal insulation and high fire resistance.
· Its design ensures long service life.
· Available in insulation thicknesses of 50-60-80-100-120-150 mm.
· Can be produced in custom lengths from 2,500 mm up to 12,500 mm.

SKU: STOKKODU-2 Categories: ,

Description

Technical Specifications

Insulation Thickness Insulation Density Metal Thickness
Painted Galvanized Steel / Painted Aluminum		 Thermal Conductivity Coefficient Fire Class
50 – 60 – 80 – 100 – 120 – 150 mm 100 – 110 – 120 – 130 kg/m3 Outer Surface 0,50 – 0,60 – 0,70 mm
Inner Surface 0,40 – 0,50 – 0,60 – 0,70 mm		 Λ = 0,035 W/mK(EN 12667) A2-s1; d0TS EN 13501-1
Water Absorption Vapor Diffusion Resistance Acoustic Insulation Rw [dB] ≥ Dimensional Stability Paint Types
2% by volume (168 hours)(EN ISO 354) 1(EN 12086) 30 dB 600 °C Polyester, PVDF, Plastisol and PVC Coating



Load Bearing Table

EMAY SMART 5R VSM
INSULATION CORE
CORE THICKNESS mm
TOP SHEET mm
BOTTOM SHEET mm
 MULTIPLE SPAN mm
THERMAL TRANSMITTANCE U VALUE U (W/m²K)
THERMAL RESISTANCE R VALUE R (m²K/W)
1000 mm 1500 mm 2000 mm 2500 mm
MINERAL WOOL
 50 0,50 0,40 548 317 226 170 0,70 1,43
60 0,50 0,40 623 370 267 192 0,58 1,71
80 0,50 0,40 743 457 333 239 0,44 2,29

• Material is taken as DX-51.
• Deflection limit is calculated as L/200.
• Calculated according to allowable-stress design.
• Load values in the table do not include point or linear loads.
• Site-related variables must also be considered.
• Load values in the table represent uniformly distributed load (kg/m²).
• The values are approximate calculations shared for reference. Emay Panel reserves the right to modify them..
• For more detailed information, contact Emay Panel quality department.
