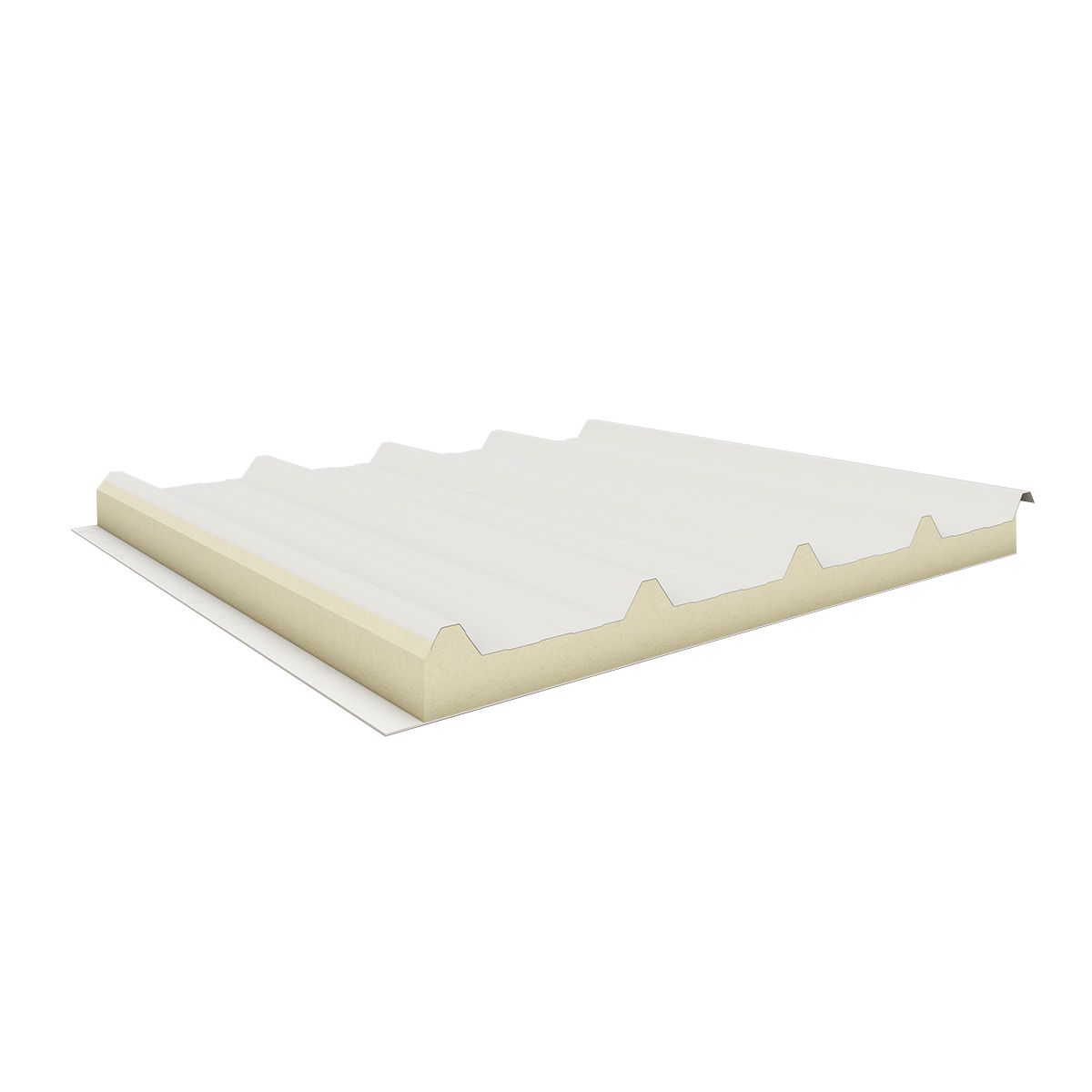

Emay Smart 5R VS CTP

Long-Lasting Performance Against Chemical and Environmental Challenges: Emay Smart 5R VS CTP

With its GRP (Glass-Reinforced Polyester) lower surface, it offers superior longevity and performance compared to alternative coatings in livestock barns, poultry houses, farms, and industrial facilities exposed to chemicals and acidic substances.

General Features
· Has a 5-rib, high-corrugation structure.
· Offers easy installation thanks to its external screw connection detail.
· The GRP lower surface prevents oxidation in chemical and acidic environments.
· Resistant to most solutions, salts, alcohols, and hydrocarbons.
· The upper surface is painted galvanized steel (PPGS) and the lower surface is GRP.
· The upper surface is available in PVDF, plastisol, polyester (PE) or PVC-film coating options.
· Provides high thermal insulation thanks to PUR/PIR insulation core.
· Does not absorb water thanks to its 95% closed-cell structure.
· Available with flame-retardant PUR core and high fire-resistance PIR insulation core options.
· Its design ensures long service life.
· Available in insulation thicknesses of 40-50-60-80-100-120 mm.
· Can be produced in custom lengths from 2,500 mm up to 13,600 mm.

SKU: STOKKODU-1-1-1-1 Categories: ,

Description

Load Bearing Table

EMAY SMART 5R VS CTP
INSULATION CORE TOP SHEET mm Bottom Sheet CTP mm MULTIPLE SPAN mm
1000 mm 1500 mm 2000 mm
PUR / PIR 0,50 0,70 221 145 111
0,50 0,,70 266 174 141
0,50 0,70 308 204 155

• Material is taken as DX-51.
• Deflection limit is calculated as L/200.
• Calculated according to allowable-stress design.
• Load values in the table do not include point or linear loads.
• Site-related variables must also be considered.
• Load values in the table represent uniformly distributed load (kg/m²).
• The values are approximate calculations shared for reference. Emay Panel reserves the right to modify them..
• For more details, please contact the Emay Panel quality department.
